Chicago Pneumatic CPX Refrigerant Air Dryer
CPX dryers remove moisture from compressed air to help protect piping, tools and production equipment from water-related damage.
Dry Air For A More Reliable System
Compressed air naturally carries moisture. The CPX refrigerant dryer cools, separates and reheats compressed air so water vapour is removed before it reaches downstream equipment.

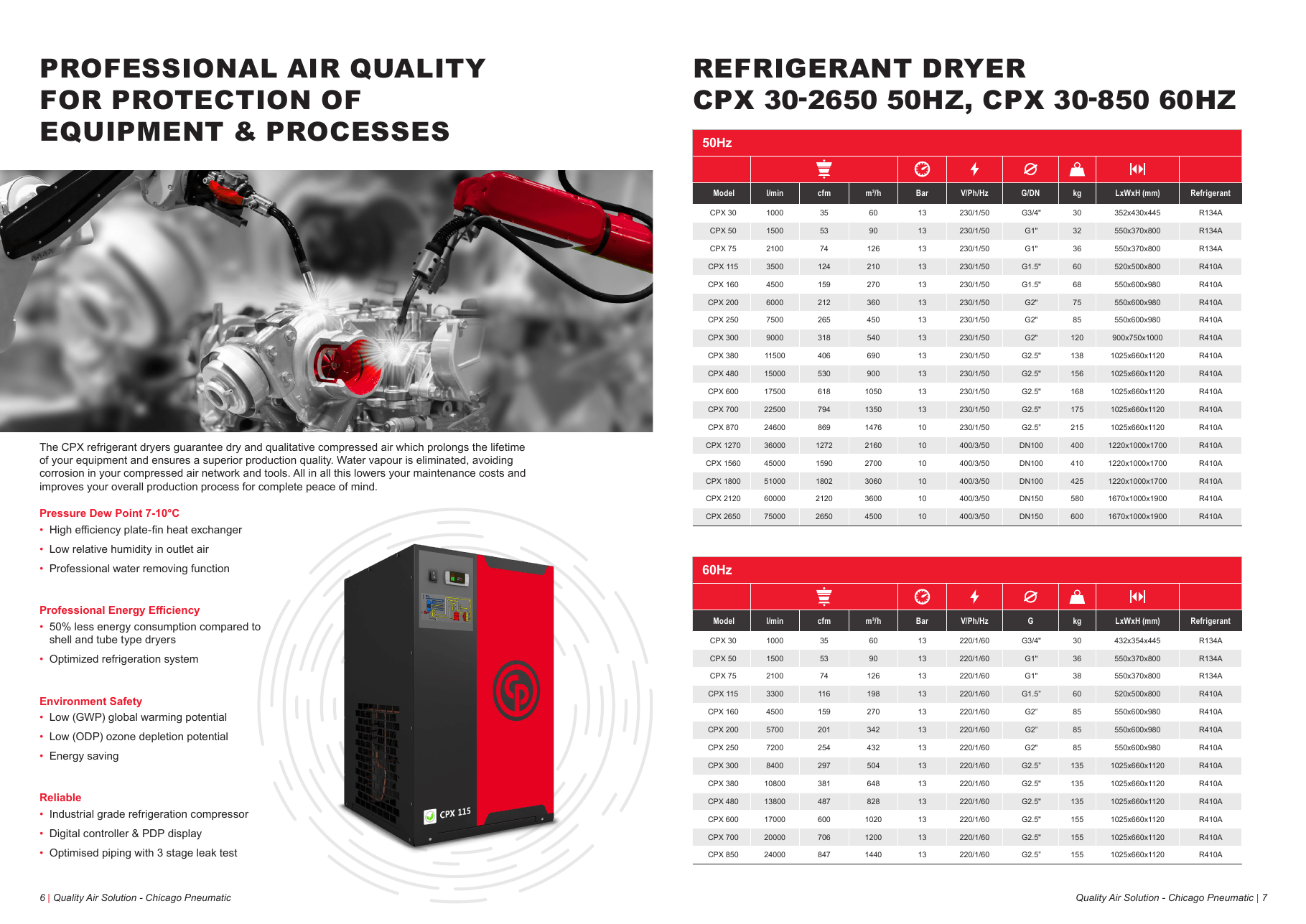

CPX 50Hz Model Snapshot
| Model | Capacity | Pressure | Power Supply | Connection | Weight | Refrigerant |
|---|---|---|---|---|---|---|
| CPX 30 | 1000 l/min / 35 cfm / 60 m3/h | 13 bar | 230/1/50 | G3/4 in | 30 kg | R134A |
| CPX 50 | 1500 l/min / 53 cfm / 90 m3/h | 13 bar | 230/1/50 | G1 in | 32 kg | R134A |
| CPX 115 | 3500 l/min / 124 cfm / 210 m3/h | 13 bar | 230/1/50 | G1.5 in | 60 kg | R410A |
| CPX 300 | 9000 l/min / 318 cfm / 540 m3/h | 13 bar | 230/1/50 | G2 in | 120 kg | R410A |
| CPX 870 | 24600 l/min / 869 cfm / 1476 m3/h | 10 bar | 230/1/50 | G2.5 in | 215 kg | R410A |
| CPX 2650 | 75000 l/min / 2650 cfm / 4500 m3/h | 10 bar | 400/3/50 | DN150 | 600 kg | R410A |
Key Dryer Features
Helps prevent corrosion in the compressed air network and tools.
Plate-fin heat exchanger design supports stable drying and lower pressure drop.
Models cover compact setups through larger compressor rooms.
See How CPX Dryers Protect Your Air System
CPX refrigerant dryers cool compressed air, remove condensed moisture, and reheat the dry air before it enters your factory pipework. This helps reduce corrosion risk, protect pneumatic tools, and maintain more consistent air quality for production.
Watch the CPX product video for a closer look at the dryer design and how it supports reliable compressed air treatment.
Need help choosing the right CP model?
Share your compressor capacity, operating pressure and site temperature with Air to Air Engineering. Our team will help recommend a suitable CPX dryer size.
