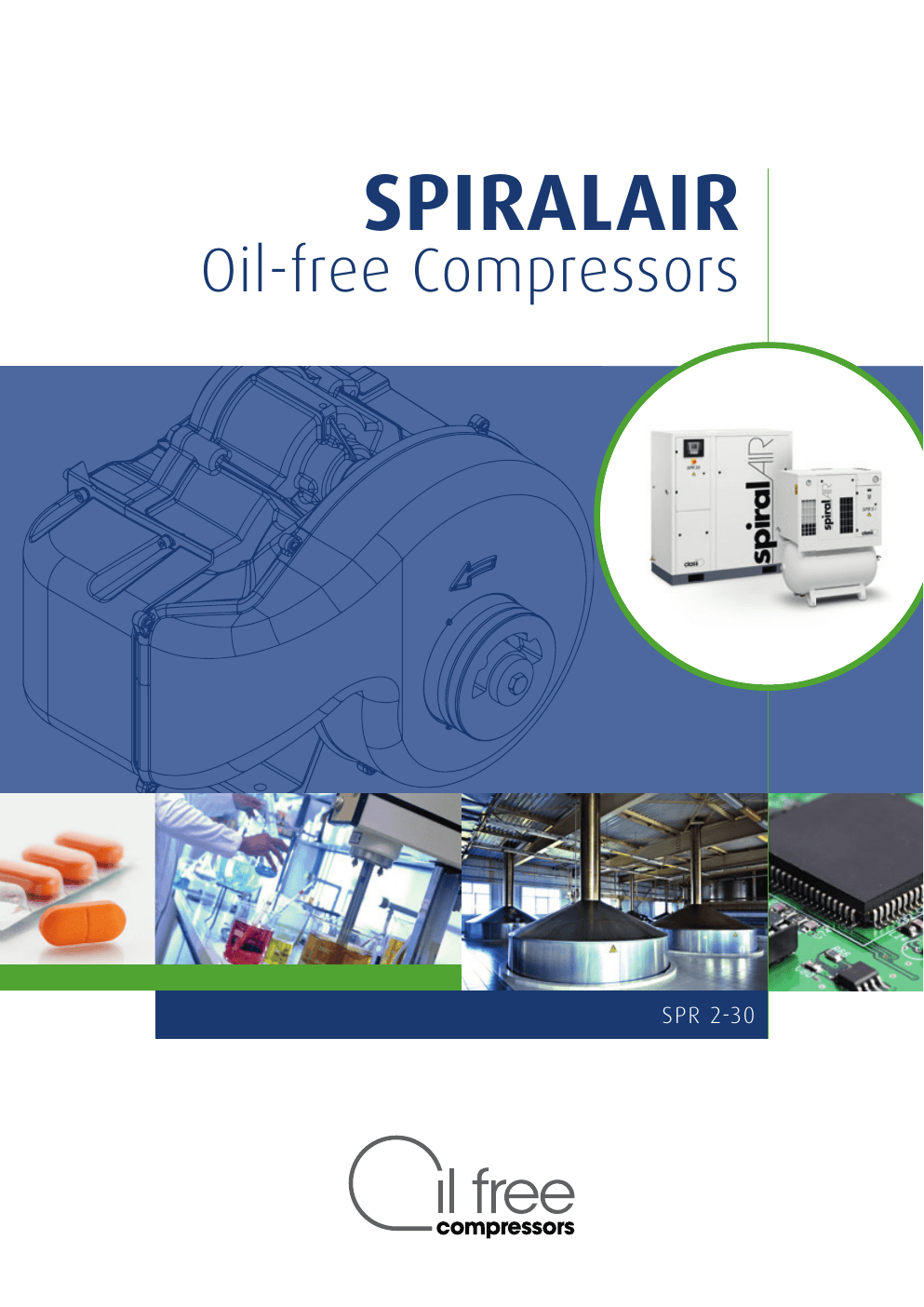

Chicago Pneumatic Oil-Free Scroll Compressors
Chicago Pneumatic Spiralair SPR 2-30 oil-free scroll compressors deliver Class 0 quality air for sensitive production environments where oil contamination cannot be tolerated.
Oil-Free Air For Critical Processes
Spiralair SPR 2-30 compressors are designed for industries that cannot risk oil contamination, including food and beverage, pharmaceutical, electronics, textiles and other quality-sensitive manufacturing environments.
The range delivers 100% oil-free compressed air, with ISO 8573-1 Class 0 air quality, low sound levels and a service-friendly vertical layout.
Spiralair SPR 2-30 Model Range
| Series | Model | Pressure | Free Air Delivery | Installed Power | Noise Level |
|---|---|---|---|---|---|
| Mono | SPR 2 | 8-10 bar | 6.8-10.4 m3/h / 1.9-2.9 l/s | 1.5 kW / 2 hp | 53 dB(A) |
| Mono | SPR 3 | 8-10 bar | 12.2-15.1 m3/h / 3.4-4.2 l/s | 2.2 kW / 3 hp | 55 dB(A) |
| Mono | SPR 5 | 8-10 bar | 21.2-24.1 m3/h / 5.9-6.7 l/s | 3.7 kW / 5 hp | 57 dB(A) |
| Mono | SPR 8 | 8-10 bar | 27.4-35.3 m3/h / 7.6-9.8 l/s | 5.5 kW / 7.5 hp | 59 dB(A) |
| Multi | SPR 10 | 8-10 bar | 40.8-48.0 m3/h / 11.4-13.4 l/s | 2 x 3.7 kW / 2 x 5 hp | 63 dB(A) |
| Multi | SPR 15 | 8-10 bar | 54.0-73.2 m3/h / 15.0-20.3 l/s | 2 x 5.5 kW / 2 x 7.5 hp | 63 dB(A) |
| Multi | SPR 20 | 8-10 bar | 82.8-95.0 m3/h / 23.0-26.4 l/s | 4 x 3.7 kW / 4 x 5 hp | 63 dB(A) |
| Multi | SPR 22 | 8-10 bar | 85.2-111.6 m3/h / 23.7-31.0 l/s | 3 x 5.5 kW / 3 x 7.5 hp | 64 dB(A) |
| Multi | SPR 30 | 8-10 bar | 108.0-147.0 m3/h / 30.0-40.8 l/s | 4 x 5.5 kW / 4 x 7.5 hp | 65 dB(A) |
Why Choose Spiralair Oil-Free Scroll Compressors
Helps protect critical processes from oil contamination and supports ISO 8573-1 Class 0 air quality requirements.
No unload power consumption, no oil changes and no oil condensate treatment help reduce operating and maintenance costs.
Sound-insulated canopy and vertical layout allow installation in many working environments without a separate compressor room.
Need help choosing the right CP model?
Share your air quality requirement, operating pressure and flow demand with Air to Air Engineering. Our team will help recommend a suitable Spiralair SPR oil-free compressor model.
