Compressed Air Filtration

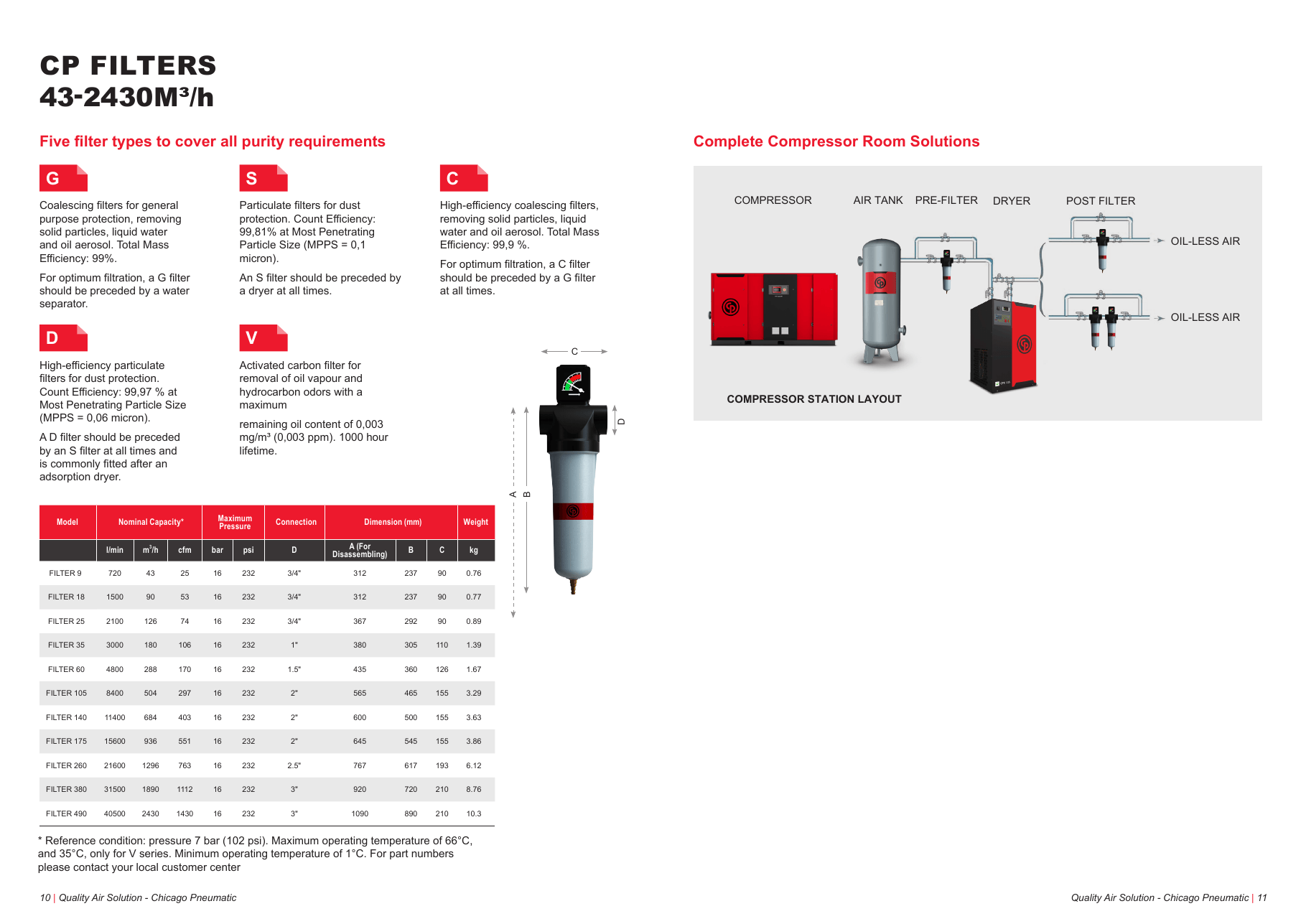

Chicago Pneumatic Compressed Air Line Filters
CP line filters help remove particles, liquid water, oil aerosol, vapour and odour from compressed air systems.
Filter 9-490Model range
43-2430 m3/hNominal capacity
5 typesG / S / C / D / V
Filter Selection
Five Filter Types
G, S, C, D and V filter types cover general protection, dust filtration, high-efficiency coalescing and activated carbon vapour removal.
Complete Air Quality
Filter Placement Matters
Filters are normally selected as part of the full air treatment line: compressor, receiver, pre-filter, dryer and post-filter. The correct sequence depends on the target ISO 8573-1 air quality class.
- Pre-filter before dryer protection
- Post-filter for air quality polishing
- Activated carbon where vapour and odour removal are required
Filter Types
| Type | Purpose | Typical Placement |
|---|---|---|
| G filter | General purpose coalescing protection for solid particles, liquid water and oil aerosol | After compressor / water separator |
| S filter | Particulate filter for dust protection | After dryer |
| C filter | High-efficiency coalescing filter for particles, liquid water and oil aerosol | After G filter |
| D filter | High-efficiency particulate filter for dust protection | After S filter or adsorption dryer |
| V filter | Activated carbon filter for oil vapour and hydrocarbon odour removal | After upstream filtration |
Model Range Snapshot
| Model | Nominal Capacity | Max Pressure | Connection | Weight |
|---|---|---|---|---|
| Filter 9 | 720 l/min / 43 m3/h / 25 cfm | 16 bar / 232 psi | 3/4 in | 0.76 kg |
| Filter 18 | 1500 l/min / 90 m3/h / 53 cfm | 16 bar / 232 psi | 3/4 in | 0.77 kg |
| Filter 35 | 3000 l/min / 180 m3/h / 106 cfm | 16 bar / 232 psi | 1 in | 1.39 kg |
| Filter 105 | 8400 l/min / 504 m3/h / 297 cfm | 16 bar / 232 psi | 2 in | 3.29 kg |
| Filter 260 | 21600 l/min / 1296 m3/h / 763 cfm | 16 bar / 232 psi | 2.5 in | 6.12 kg |
| Filter 490 | 40500 l/min / 2430 m3/h / 1430 cfm | 16 bar / 232 psi | 3 in | 10.3 kg |
