REFRIGERATION DRYERS WITH LOW GWP R513A REFRIGERANT
FMD Dryers

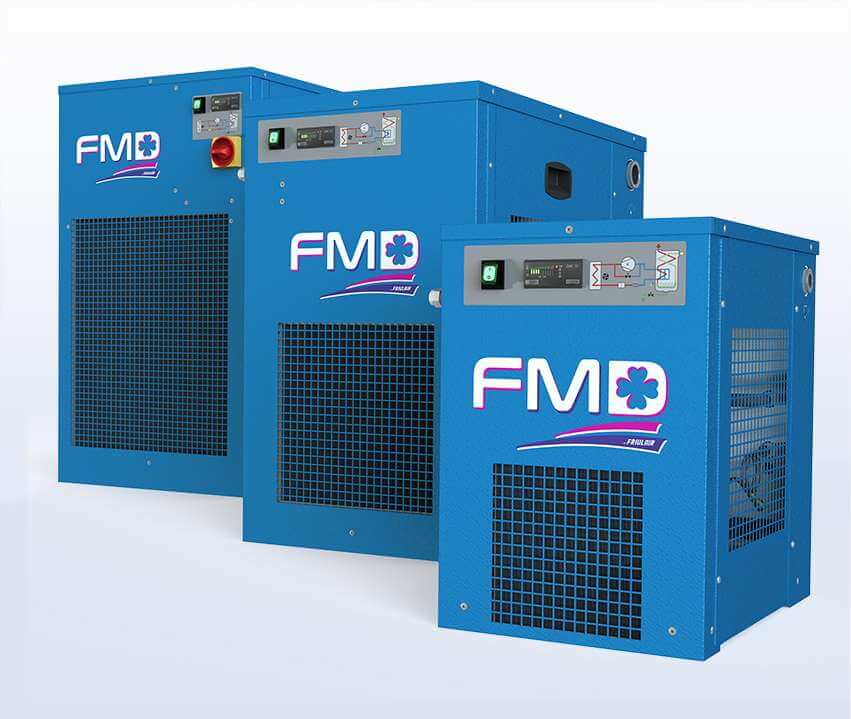

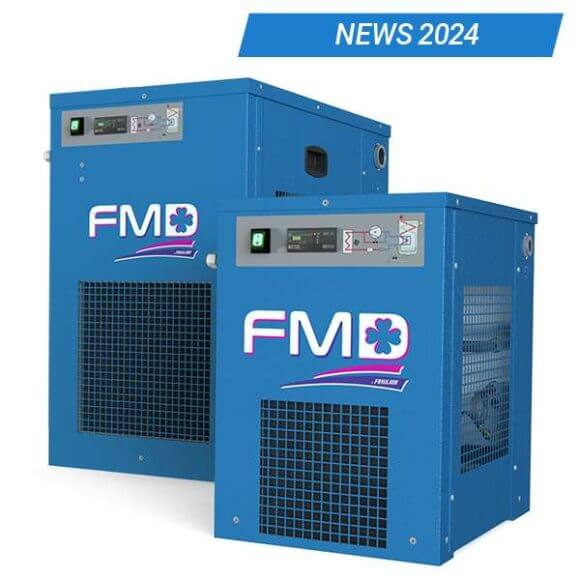

The new FMD series of refrigeration dryers replaces the “Original” AMD and has been redesigned .
Features
Technical Data
Main Components
Features
MAIN FEATURES ARE:
- The use of R513A refrigerant gas with very low environmental impact (GWP = 631CO2 ton/eq);
- An improved dew point at 3°C;
- New compactness ALU-DRY heat exchangers;
- New component layout;
- A new frame design for greater strength.
Symbolised by a four-leaf clover, FMDs have four indispensable features for compressed air treatment.
- Consistent and guaranteed performance over a wide range of temperature use.
Cost-effectiveness due to their compatibility with the compressor sizes on the market.
- Functionality with user-friendly electronic controllers (INDUSTRY 4.0 ready) for managing condensate drainage and condensation, stainless steel hot gas by-pass valve and ALU-DRY heat exchanger on the entire range.
- Ecology: the materials used are highly recyclable and R513A refrigerant gas comply with current regulations.
MAXIMUM OPERATING CONDITIONS:
- Ambient temperature: +45°C.
- Inlet air pressure:16 barg.
- Inlet air temperature: +55°C.
Technical Data
| Model | Refrigerant | Air flow | Power Supply | Connections | |||
| [Type] | [m3/h] | [l/min] | [scfm] | [Ph/Volt/Fr] | [ Ø ] | ||
| FMD 3 | R513A | 21 | 350 | 12 | 1/230/50-60 | 1/2″ | |
| FMD 6 | R513A | 36 | 600 | 21 | 1/230/50-60 | 1/2″ | |
| FMD 9 | R513A | 57 | 950 | 34 | 1/230/50-60 | 1/2″ | |
| FMD 12 | R513A | 72 | 1200 | 42 | 1/230/50-60 | 1/2″ | |
| FMD 18 | R513A | 108 | 1800 | 64 | 1/230/50-60 | 1/2″ | |
| FMD 25 | R513A | 150 | 2500 | 88 | 1/230/50-60 | 1″ | |
| FMD 32 | R513A | 192 | 3200 | 113 | 1/230/50 | 1.1/4″ | |
| FMD 43 | R513A | 258 | 4300 | 152 | 1/230/50 | 1.1/4″ | |
| FMD 52 | R513A | 312 | 5200 | 184 | 1/230/50 | 1.1/4″ | |
| FMD 61 | R513A | 366 | 6100 | 216 | 1/230/50 | 1.1/4″ | |
| FMD 75 | R513A | 450 | 7500 | 265 | 1/230/50 | 1.1/4″ | |
| FMD 105 | R513A | 630 | 10500 | 371 | 1/230/50 | 2″ | |
| FMD 130 | R513A | 780 | 13000 | 459 | 1/230/50 | 2″ | |
| FMD 168 | R513A | 1008 | 16800 | 594 | 1/230/50 | 2.1/2″ | |
| FMD 190 | R513A | 1140 | 19000 | 670 | 3/400/50 | 2.1/2″ | |
| FMD 220 | R513A | 1320 | 22000 | 777 | 3/400/50 | 2.1/2″ | |
Data refer to the following nominal conditions: ambient temperature +25°C; air inlet pressure 7 barg; air inlet temperature +35°C; and a pressure dew point of
Main Components
- ALU DRY Aluminum Heat Exchanger
- Efficient High-Capacity Compressor
- Spacious Condenser Unit
- DMC35 Digital Controller with Modbus RS485
- Thermal Protection or Thermo-Ammeter Feature for Refrigerant Compressor
- Automated Regulation of Condensation Pressure
- Protection Against High Discharge Temperatures in Compressors (from FMD75)
- Phase Sequence Relay Safety for 3ph Refrigerant Compressors
- Safety Pressure Switches for High and Low Refrigerant Levels
- Bypass Valve for Managing Hot Gas
- Scheduled Drainage for Condensation
- Heating System for Compressor Crankcase (3ph models)
- Customizable Models with Various Power Supplies and Connection Options [Ph/V/Hz] Available Upon Request
