PREMIUM REFRIGERATION DRYERS FOR HIGH INLET AIR TEMPERATURE
AHT Dryers

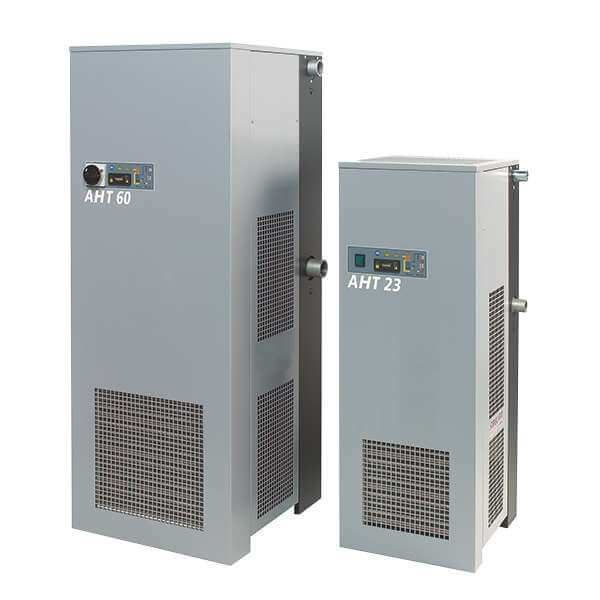

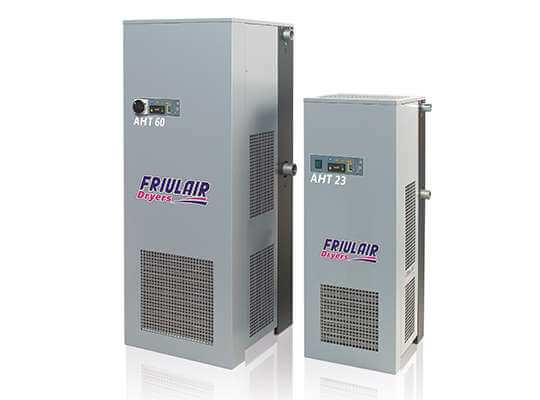

The AHT range incorporates the pre-cooler, three-micron separator filter and refrigeration dryer designed based on the ACT range technology in a single unit.
Features
Technical Data
Main Components
Features
MAIN FEATURES
The AHT range efficiently integrates key components (pre-cooler, separator filter, refrigeration dryer) into a single unit, utilizing ACT range technology. Features include:
- Combined heat exchange coil (copper and aluminium) for effective cooling.
- Pre-filter with automatic condensate drain.
- Compact vertical layout to save space.
- High operational limits.
- Industry 4.0-ready electronic controller.
- Efficient condensate drainage with two separate devices.
This design ensures a minimal footprint and optimal performance for compressed air treatment.
MAXIMUM OPERATING CONDITIONS:
- Ambient temperature: + 50°C
- Inlet air pressure: 16 barg (ACT3÷18) – 14 barg
- Inlet air temperature: + 100°
Technical Data
| Model | Refrigerant | Air flow | Power Supply | Connections | |||
| [Type] | [m3/h] | [l/min] | [scfm] | [Ph/Volt/Fr] | [ Ø ] | ||
| AHT 5 | R 134.a | 33 | 550 | 19 | 1/230-240/50 | G 1/2” BSP-F | |
| AHT 8 | R 134.a | 51 | 850 | 30 | 1/230-240/50 | G 1/2” BSP-F | |
| AHT 12 | R 134.a | 72 | 1 200 | 42 | 1/230-240/50 | G 1/2” BSP-F | |
| AHT 18 | R 134.a | 108 | 1 800 | 64 | 1/230-240/50 | G 1” BSP-F | |
| AHT 23 | R 134.a | 138 | 2 300 | 81 | 1/230-240/50 | G 1” BSP-F | |
| AHT 30 | R 407C | 186 | 3 100 | 109 | 1/230-240/50 | G 1.1/4” BSP-F | |
| AHT 40 | R 407C | 240 | 4 000 | 141 | 1/230-240/50 | G 1.1/4” BSP-F | |
| AHT 55 | R 407C | 330 | 5 500 | 194 | 1/230-240/50 | G 1.1/2” BSP-F | |
| AHT 60 | R 407C | 372 | 6 200 | 219 | 1/230-240/50 | G 1.1/2” BSP-F | |
| AHT 80 | R 407C | 486 | 8 100 | 286 | 1/230-240/50 | G 2” BSP-F | |
| AHT 100 | R 407C | 630 | 10 500 | 371 | 1/230-240/50 | G 2” BSP-F | |
Data refer to the following nominal condition: ambient temperature + 32 °C; inlet air pressure 7 barg; inlet air temperature +80 °C.
Main Components
- ALU DRY Aluminum Heat Exchanger
- High-Efficiency Compressor
- Spacious Condenser Unit
- DMC34 Digital Controller with RS485 Modbus Capability
- Thermal or Thermo-Ammeter Protection for Refrigerant Compressor
- Automated Control for Condensation Pressure
- Protection Against Elevated Compressor Temperatures (beginning with AHT 30)
- Safety Pressure Switches for High and Low Refrigerant Pressure (starting from AHT 80)
- Bypass Valve for Hot Gas Management
- Scheduled Drainage for Condensation
- Aftercooler Included
- Pre-Filter Positioned Between AFR and HE
- Models with Alternate Power Supplies and Connection Types [Ph/V/Hz] Available Upon Request
- Option for Higher Flow Rates and Pressures Available Upon Request
