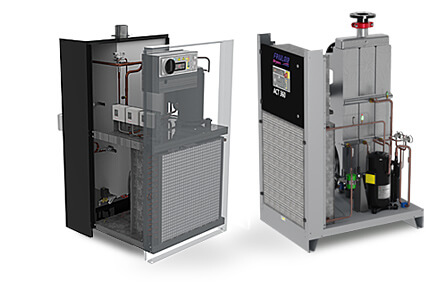

ACT Dryers
With the creation of the ACT series (Aluminum Cooling Technology), Friulair expands its selection of compressed air dryers while reducing energy usage.
Main features are:
- Little pressure decrease even under varying loads;
- ALU-DRY heat exchanger, high-efficiency compressors, novel hot gas by-pass valve, and zero loss drain condensate system (from ACT 180 incorporated) all contribute to low power consumption;
- Continuous tension Dew Point under various loading circumstances;
- Function even at the highest working temperatures (air inlet 70°C and ambient 50°C)
EASY MAINTENANCE
The ACT series has been developed and constructed to simplify any potential inspection and maintenance tasks. All system components are immediately accessible, and the hoods can be removed easily. The operator is made more efficient when performing routine controls by the component layout’s clarity, the refrigerant circuit’s straightforward construction, and the numbering of the electrical system’s wires.
The ACT range’s components, from the refrigerant to building materials, have all been chosen with the utmost consideration for the environment and their potential for recycling.
| Model | Refrigerant | Air flow | Power Supply | Connections | ||
| . | [Type] | [m3/h] | [l/min] | [scfm] | [Ph/Volt/Fr] | [ Ø ] |
| ACT 3 | R 134.a | 21 | 350 | 12 | 1/230/50-60 | G 1/2” BSP-F |
| ACT 5 | R 134.a | 33 | 550 | 19 | 1/230/50-60 | G 1/2” BSP-F |
| ACT 8 | R 134.a | 51 | 850 | 30 | 1/230/50-60 | G 1/2” BSP-F |
| ACT 12 | R 134.a | 72 | 1 200 | 42 | 1/230/50-60 | G 1/2” BSP-F |
| ACT 18 | R 134.a | 108 | 1 800 | 64 | 1/230/50-60 | G 1” BSP-F |
| ACT 23 | R 134.a | 138 | 2 300 | 81 | 1/230/50 | G 1” BSP-F |
| ACT 30 | R 407C | 186 | 3 100 | 109 | 1/230/50 | G 1.1/4” BSP-F |
| ACT 40 | R 407C | 240 | 4 000 | 141 | 1/230/50 | G 1.1/4” BSP-F |
| ACT 55 | R 407C | 330 | 5 500 | 194 | 1/230/50 | G 1.1/2” BSP-F |
| ACT 60 | R 407C | 372 | 6 200 | 219 | 1/230/50 | G 1.1/2” BSP-F |
| ACT 80 | R 407C | 486 | 8 100 | 286 | 1/230/50 | G 2” BSP-F |
| ACT 100 | R 407C | 630 | 10 500 | 371 | 1/230/50 | G 2” BSP-F |
| ACT 120 | R 407C | 750 | 12 500 | 441 | 1/230/50 | G 2.1/2” BSP-F |
| ACT 140 | R 407C | 870 | 14 500 | 512 | 1/230/50 | G 2.1/2” BSP-F |
| ACT 160 | R 407C | 960 | 16 000 | 565 | 1/230/50 | G 2.1/2” BSP-F |
| ACT 55 3ph | R 134.a | 330 | 5 500 | 194 | 3/400/50 | G 1.1/2” BSP-F |
| ACT 60 3ph | R 134.a | 372 | 6 200 | 219 | 3/400/50 | G 1.1/2” BSP-F |
| ACT 80 3ph | R 134.a | 486 | 8 100 | 286 | 3/400/50 | G 2” BSP-F |
| ACT 100 3ph | R 134.a | 630 | 10 500 | 371 | 3/400/50 | G 2” BSP-F |
| ACT 120 3ph | R 407C | 750 | 12 500 | 441 | 3/400/50 | G 2.1/2” BSP-F |
| ACT 140 3ph | R 407C | 870 | 14 500 | 512 | 3/400/50 | G 2.1/2” BSP-F |
| ACT 160 3ph | R 407C | 960 | 16 000 | 565 | 3/400/50 | G 2.1/2” BSP-F |
| ACT 180 | R 407C | 1 080 | 18 000 | 636 | 3/400/50 | DN80 PN16 |
| ACT 210 | R 407C | 1 260 | 21 000 | 742 | 3/400/50 | DN80 PN16 |
| ACT 250 | R 407C | 1 500 | 25 000 | 883 | 3/400/50 | DN80 PN16 |
| ACT 300 | R 407C | 1 800 | 30 000 | 1 060 | 3/400/50 | DN80 PN16 |
| ACT 360 | R 407C | 2 208 | 36 800 | 1 300 | 3/400/50 | DN80 PN16 |
| ACT 400 | R 407C | 2 400 | 40 000 | 1 413 | 3/400/50 | DN100 PN16 |
| ACT 500 | R 407C | 3 000 | 50 000 | 1 766 | 3/400/50 | DN100 PN16 |
| ACT 600 | R 407C | 3 600 | 60 000 | 2 119 | 3/400/50 | DN100 PN16 |
| ACT 720 | R 407C | 4 416 | 73 600 | 2 600 | 3/400/50 | DN100 PN16 |
| ACT 900 | R 407C | 5 400 | 90 000 | 3 178 | 3/400/50 | DN150 PN16 |
| ACT 1100 | R 407C | 6 624 | 110 400 | 3 900 | 3/400/50 | DN150 PN16 |
| ACT 1200 | R 407C | 7 200 | 120 000 | 4 238 | 3/400/50 | DN200 PN16 |
| ACT 1500 | R 407C | 8 832 | 147 200 | 5 200 | 3/400/50 | DN200 PN16 |
| ACT 1800 | R 407C | 10 800 | 180 000 | 6 356 | 3/400/50 | DN200 PN16 |
| ACT 2200 | R 407C | 13 248 | 220 800 | 7 800 | 3/400/50 | DN200 PN16 |
| ACT 2400 | R 407C | 14 400 | 240 000 | 8 476 | 3/400/50 | DN250 PN16 |
| ACT 3000 | R 407C | 17 664 | 294 400 | 10 400 | 3/400/50 | DN250 PN16 |
Data refer to the following nominal condition: ambient temperature + 25 °C; inlet air pressure 7 barg; inlet air temperature +35 °C.
- ALU DRY Aluminum Heat Exchanger
- Efficient High-Performance Compressor
- Large-Scale Condenser Unit
- Water Pressure Switch Valve (water-cooled) – Originating from ACT55
- Digital Controller Models: DMC34 (ACT 3÷160) – DMC24 (ACT 180÷3000) RS485 modbus
- Thermal or Thermo-ammeter Protection for the Refrigerant Compressor
- Automated Control of Condensation Pressure
- Protection Against High Compressor Temperatures – Starting with ACT55
- Phase Sequence Relay Protection for Refrigerant Compressor (applicable to 3ph models)
- Safety Pressure Switches for High and Low Refrigerant Pressure (for models ACT 80÷3000 / ACT 55÷3000 3ph)
- Bypass Valve for Hot Gas
- Timed Condensation Drainage (ACT 3÷160)
- Electronic Condensation Drain System (ACT 180÷3000)
- Heating System for Compressor Crankcase (exclusive to 3ph models)
- On request models with different Power Supply and different connections [Ph/V/Hz]
- For ACT 180÷3000: counter-flanges and EN 1092-1 gaskets included.
